Marine engines operate in some of the harshest environments on the planet. Constant motion, saltwater exposure, and high dynamic loads put enormous stress on every component aboard a vessel. One of the most overlooked yet critical elements of a reliable propulsion system is vibration control.
Without proper isolation, engine vibration transfers directly into the vessel structure, accelerating wear, increasing noise, and compromising crew comfort. Selecting the right anti vibration mounts is therefore not just a technical decision. It is a long-term investment in vessel safety, performance, and equipment longevity.
In this blog, we cover how to choose the right marine engine mounts for your vessel.
What Are Anti Vibration Mounts and How Do They Work?

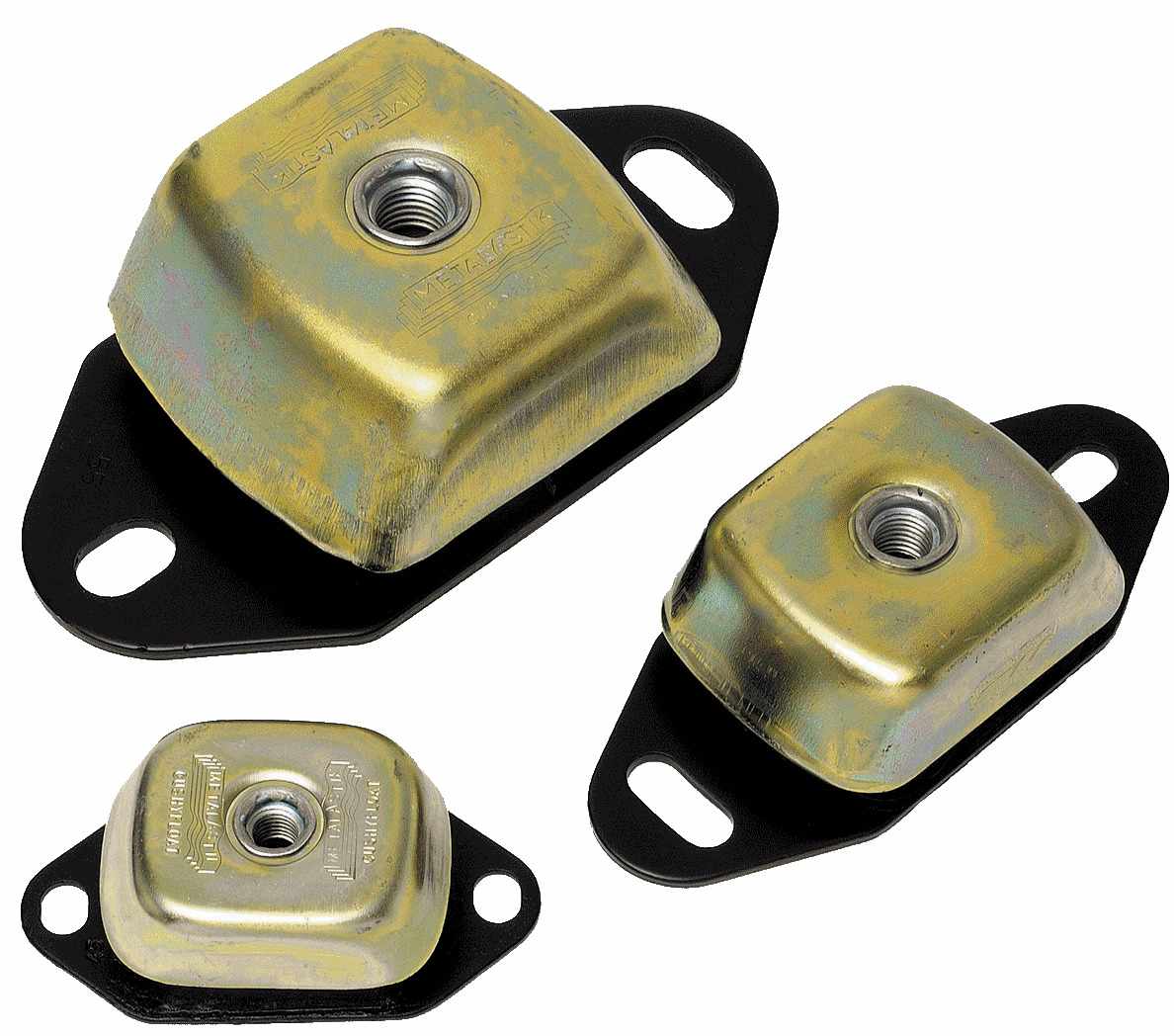

Anti vibration mounts are engineered isolators that are placed between a marine engine and the vessel structure. They function as shock absorbers for the vibrational energy produced by the engine. This is done by using the elastic nature of either rubber, a metal spring, or both materials.
The mechanism behind rubber mounts is based on bending, which allows the energy to be absorbed and converted to heat. Rubber and spring isolators go even one step further and offer enhanced isolation over a wider range of frequencies, especially at low frequencies where rubber isolators cannot function efficiently.
Both of these isolators are designed specifically for multi-directional loads associated with marine propulsion systems, unlike generic industrial mounts that cannot endure them.
Why Marine Engine Mounts Matter for Your Vessel
The effects of insufficient vibration damping go far beyond mere noise and discomfort. The uncontrolled vibration results in fatigue damage to the hull, pipes, and equipment aboard the vessel. This results in expensive repairs, unscheduled maintenance, and a shortened lifespan of various components.
Marine engine mounts play a vital role in protecting the vessel from these effects. By isolating the propulsion system, they:
reduce the mechanical stress transferred to surrounding structures
extend the operational lifespan of the engine and drivetrain
create a more stable, quieter environment for the crew
In naval, offshore, military, and commercial applications where reliability is non-negotiable, properly specified marine engine mounts are simply not optional.
Key Factors to Consider When Choosing Anti Vibration Mounts
Selecting the correct mount for your application requires careful consideration of several interdependent factors:
Engine Type and Weight: The type of diesel engine you have for the propulsion system will be responsible for determining the loading needs of the mount. The heavier the engine, the stronger the mount has to be.
Dynamic Load Conditions: Since the marine environment is characterized by movement, load conditions in terms of pitching, rolling, and wave action all add up to dynamic loads. The mounts have to withstand both static and dynamic loads.
Vibration Frequency Range: Various engines generate vibrations in various frequency ranges. Rubber vibration mounts are good for handling middle to high-frequency vibrations, while rubber and spring mounts work well in isolating low-frequency vibrations.
Environmental Resistance: The mount should be resistant to salt water, moisture, oils, and changes in temperature. The use of marine grade materials is necessary.
Vessel Application: Each naval ship, offshore platform, or commercial vessel will have its own unique vibration characteristics and performance levels. Always choose the right mounting system based on the operational conditions of your ship.
Common Mistakes to Avoid When Selecting Marine Engine Mounts
Even experienced engineers can fall into avoidable errors when specifying vibration isolation. Here are the most common pitfalls:
Using Industrial Mounts in Marine Applications
Standard industrial mounts cannot be used in marine environments because they are not designed to withstand movement, wetness, and corrosion. This can lead to their premature failure and loss of warranty.
Ignoring Load Ratings
The mount will become compressed past its effective range, thus failing to offer any form of vibration isolation. Make sure that you check your static and dynamic load capacity.
Prioritising Price Over Performance
The mount may appear cheap at first glance, but failure to provide proper isolation means that your boat will be damaged, along with expensive repairs in the long run.
Skipping Expert Specification Support
This kind of engineering needs an expert. It makes sense to consult with the expert to get the right mount for your boat.
Conclusion
Selecting the correct anti-vibration mount for your marine engine is one of the most impactful decisions when it comes to ensuring optimal performance in the future. There is an endless list of issues you have to be aware of, including load capacities and frequency range.
In order to isolate the propulsion system of ships and boats from various environmental impacts, specially designed marine engine mounts are used. When choosing the mounts for a new vessel, as well as when replacing the old isolation systems, it is recommended that you speak with a specialist familiar with the marine environment.
